Granite saws, polishers and slab-handling systems need frames that stay aligned under vibration, water, slurry and uneven loads. By the end, you will know why square hollow sections suit these machines, where they belong, how to specify them and what to inspect before fabrication.
Key takeaways
- Use square hollow sections for stiffness with lower weight than solid bar.
- Match pipe size and wall thickness to span, load and vibration.
- Inspect welds, diagonals, flatness and anchor points before machine assembly.
- Request the grade, wall thickness, length and test documents before buying.
Why Square Pipe Suits a Granite-Machine Frame
A granite-machine frame needs stiffness against bending and twisting, not just high tensile strength. An ERW MS square hollow section supplies that stiffness with less mass and cost than a solid bar, while its four flat faces simplify mounting motor brackets, guide rails, trays, guards and leveling feet.
That makes square pipe for granite machines practical to cut, fixture, drill and weld.
| Option | Useful strength | Limitation |
|---|---|---|
| Square hollow section | Balanced bending resistance, flat mounting faces and good torsional behaviour | Weld heat can distort thin walls |
| Round pipe | Efficient in some load directions and smooth for handrails | Curved surface complicates brackets, rails and alignment |
| Angle | Low cost and easy access for simple frames | Open section twists more and collects slurry at joints |
| Channel | Strong along its web and useful for ledges | Unequal stiffness and awkward enclosed guarding |
| I-section | Excellent major-axis bending strength | Poor torsional resistance and difficult attachment of small parts |
| Aluminium extrusion | Light, adjustable and quick to assemble | Higher cost, lower stiffness for a comparable machine base |
| Stainless steel | Better corrosion resistance around persistent wet slurry | Higher material cost and more demanding welding |
Choose MS square pipe in Madurai by stating outside dimensions and wall thickness separately; “50 mm square” is incomplete. The section suits bases, legs, worktables, conveyor supports, splash-panel frames and service structures, but not cutting edges, bearing seats or precision guides.
For heavy point loads or long spans, calculate deflection and local crushing rather than assuming the largest-looking tube is adequate.
Which Granite-Machine Parts Use MS Square Pipe
Machine bases, support legs, conveyor frames and motor platforms need structural MS square pipe because they carry equipment weight, slab loads and cutting vibration. These members transfer forces into the feet and keep the machine from twisting.
Common mild steel square pipe uses also include worktable frames, guide-rail supports, brackets, splash-panel supports and service platforms. Select the section from the span and load, not merely from the appearance of an existing machine.
| Component class | Typical parts | Section duty |
|---|---|---|
| Structural frame | Base rails, legs, cross-members, conveyor supports and motor platforms | Carries weight, span loads and vibration; use a specified wall thickness and grade |
| Secondary support | Worktables, guide-rail brackets, trays and service structures | Supports moderate loads; add gussets where loads enter at one point |
| Light-duty enclosure | Guards, covers, splash panels and removable screens | Holds a panel or prevents contact; a lighter section is sufficient if it carries no machinery load |
| Not a square-pipe application | Cutting edges, spindles, bearing seats and precision guide surfaces | Use tool steel, alloy steel, cast iron or machined components instead |
For square pipe for granite machines, do not substitute thin decorative tube for a frame member. A guard made from light section can flex without affecting alignment; a motor platform that flexes changes belt tension and may transmit vibration into the cut.
Seal or drain open ends. Stone slurry entering a hollow member retains water, causing internal corrosion even when the outside is painted.
How to Choose Section Size, Wall Thickness and Grade
Specify the outside dimensions and wall thickness separately; “50 mm square pipe” is incomplete. A 50 × 50 mm section may be available in 2, 2.5, 3 or 4 mm wall, and each changes stiffness, mass, weld preparation and cost.
| Specification | What to state | Why it matters |
|---|---|---|
| Outside size | 50 × 50 mm, 75 × 75 mm or another design dimension | Bending stiffness rises sharply as the section becomes deeper |
| Wall thickness | Exact nominal thickness, such as 3 mm or 4 mm | Controls local denting, weld strength and resistance to point loads |
| Length | Finished cut length and tolerance, plus stock length | Prevents excess joints, cutting waste and frame distortion |
| Grade | IS 4923 grade, such as YST 210, with ERW construction | Confirms mechanical properties and prevents decorative tube substitution |
Choose the section from the unsupported span, equipment weight and load position. A central point load on a simply supported rail produces deflection that rises roughly with the cube of span; adding a cross-member or reducing span often helps more than changing to a higher-strength grade with the same dimensions.
Check vibration and concentrated feet loads separately.
For a granite-machine frame, ask for the grade, outside dimensions, wall thickness, heat or batch number and mill test certificate. State whether the pipe will be welded, drilled, exposed to slurry or painted. Specify straight, undamaged sections with square corners and a clean internal surface.
This procurement wording makes ms square pipe for granite machinery in madurai distinct from light decorative tubing. The same discipline applies when sourcing ms square pipe in madurai: compare actual mass per metre and thickness tolerance, not only price per length.
How Fabrication and Inspection Protect Alignment
A frame that is cut square but welded carelessly will still pull out of alignment. For mild steel square pipe uses in granite machinery, straight stock, controlled heat and documented inspection protect both accuracy and service life; square pipe for granite machines is only as reliable as its fabrication.
1. Check each length on a flat surface. Measure diagonals across the section and frame, then compare outside dimensions, wall thickness and straightness. A bowed member transfers error into guide rails, tables and conveyor paths.
2. Cut to the drawing length with a saw, not a torch, where close fit-up matters. Deburr every end and verify the cut with a steel rule and square. A short member creates gaps; an overlength member forces the frame out of square.
3. Tack the complete frame on a level jig before welding. Measure both frame diagonals and keep them equal. Weld opposite sides in alternating passes, using controlled heat input, because one long continuous weld can shrink a thin wall and twist the assembly.
4. Add temporary braces before final welding and retain permanent cross-bracing where span or vibration demands it. Remove temporary braces only after the frame has cooled and the final measurements pass.
5. Machine mounting pads, guide seats or bearing supports after welding when alignment tolerance is tight. Stress relief may be needed for critical bases; do not correct distortion by hammering.
6. Seal tube ends with caps or provide drainage holes. Remove slurry from weld toes and horizontal faces, prepare the steel, and apply a suitable coating. Trapped water and stone dust cause internal rust that weakens the frame unseen.
Require inspection records showing grade, dimensions, wall thickness and heat traceability, then reject crushed corners, weld-line defects, internal rust or rectangular sections supplied as square.
What to Check Before Buying Pipe in Madurai
Compare suppliers on structural evidence, not on the label “MS square pipe.” A 50 mm square pipe can mean 50 × 50 mm outside dimensions with different wall thicknesses, and the lighter option can deflect, twist or weld poorly under a granite machine’s vibration and point loads.
| Supplier comparison | What to verify | Why it matters for a machine frame |
|---|---|---|
| Section specification | Outside size, wall thickness, length, grade and quantity stated separately | Prevents substitution with a light-fabrication tube |
| Declared standard | IS 4923, EN 10219 or another named standard | “MS” alone does not identify mechanical performance |
| Mill documentation | Grade, chemical or mechanical properties, heat or batch number, dimensions and thickness | Gives traceability when a frame cracks or alignment changes |
| Physical condition | Straightness, square corners, clean weld line, no internal rust or crushed ends | Bent or damaged sections create fit-up errors and weak joints |
| Supply accuracy | Consistent lengths and thickness across the batch | Mixed sections alter stiffness and complicate fabrication |
Ask for a sample or inspect the bundle before accepting delivery. Measure both diagonals across the tube opening to confirm it is square, check wall thickness at more than one point, and reject sections with deep seam defects or corner dents.
For MS square pipe for granite machinery in Madurai, give the supplier the frame loads, span, support spacing and required cut lengths. Sun Steel Traders can be assessed fairly by receiving that same written specification and requesting the inspection documents before fabrication begins.
A supplier who cannot identify the heat or declared standard is a poor choice for a precision frame.
Related product

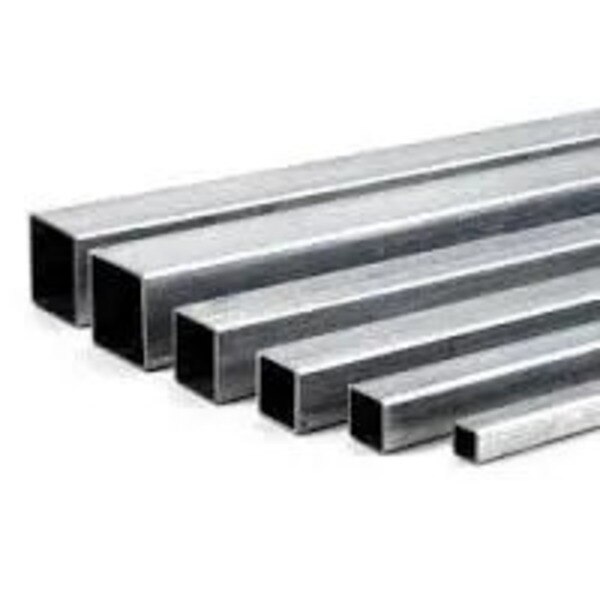

 | Ms Square Pipes Dealers In Madurai These MS Square Steel Pipes That We Offer Are Made From High Grade Mild Steel Materials That Are Highly Break Resistant. View product → |
Frequently asked questions
Why is MS square pipe suitable for granite-machine frames?
Its closed section resists bending and twisting, while four flat faces simplify mounting brackets, rails, trays, guards and leveling feet.
Which granite-machine parts use MS square pipe?
Fabricators use it for base frames, legs, cross-members, motor supports, guide-rail supports, safety guards and service trays.
How do you choose square-pipe size and wall thickness?
Select the section from the frame span, equipment load, vibration and support spacing; then choose wall thickness that prevents local buckling and accepts the required welds.
What should you inspect before buying MS square pipe in Madurai?
Check section dimensions, wall thickness, straightness, surface condition, weld seam, cut ends, quantity, grade and available material documents.
